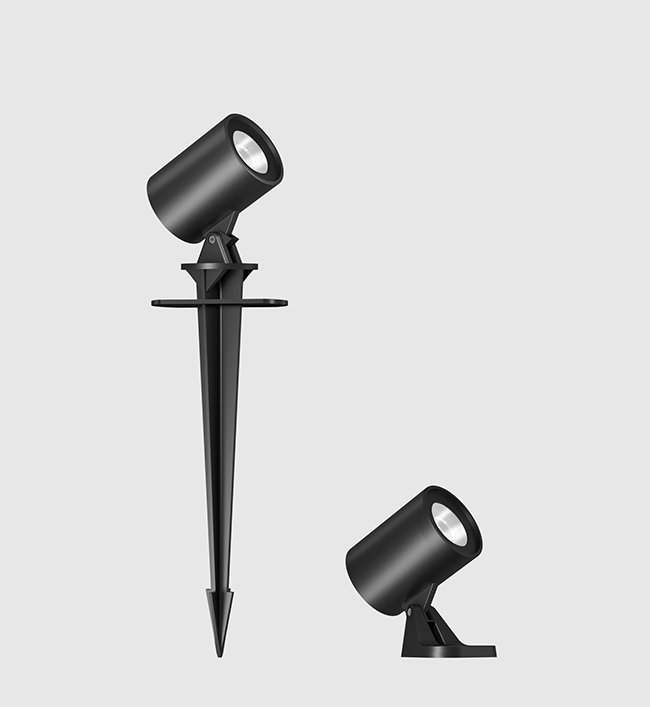

Nebula Midi
LED compact spot light luminaires designed to provide directional light.The luminaires comes with a connecting cable and an earth spike for portable installation or bracket for permanent installation on a wall,under a ceiling or on a column.

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Mounting earth spike or die-cast aluminium bracket arrangement to facilitate easy installation at any desired location.
• Swivel range of 0°-90°.
• Luminaire supplied with 0.5 metre cable length and a IP67 connector.
• Silicone gasket.
• Prewired with GU10 holder and suitable for operation on 240V,50Hz single phase ac supply.

Product Benefits
• Sturdy construction in order to maintain performance of the luminaire and to reduce maintenance costs.
• Quick & simple installation.
• Clear glass in the front with continuous rubber gasket to ensure adequate sealing against ingress of moisture,dust,insects etc.,

Area of Application

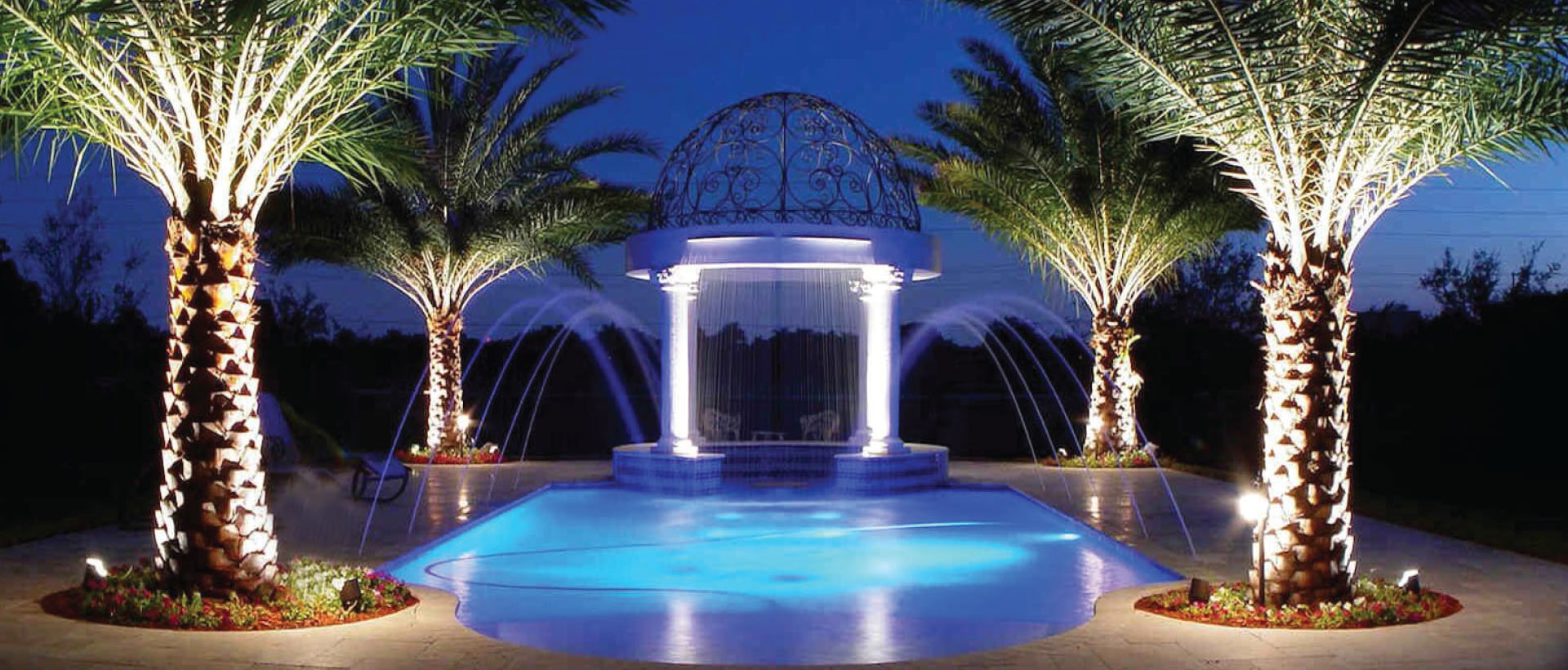

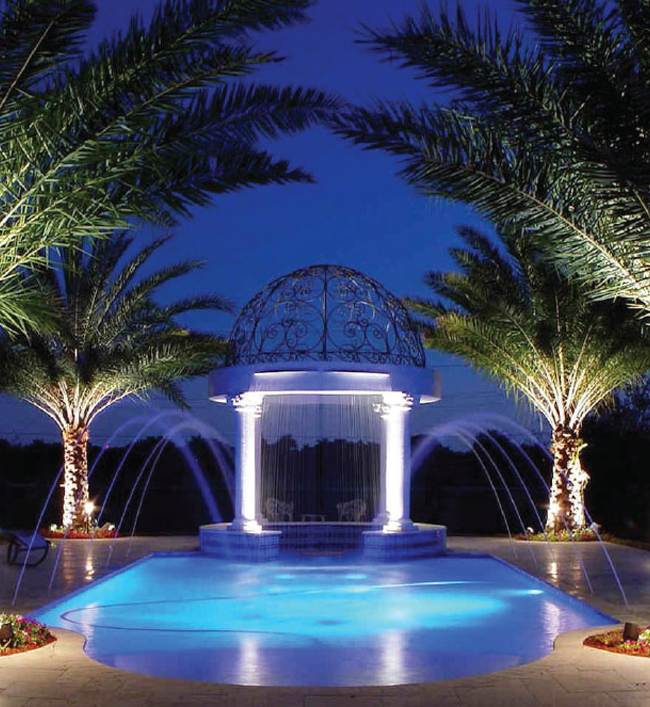

Pathways,Parks,Sculptures,Gardens,Structures and Landscape lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

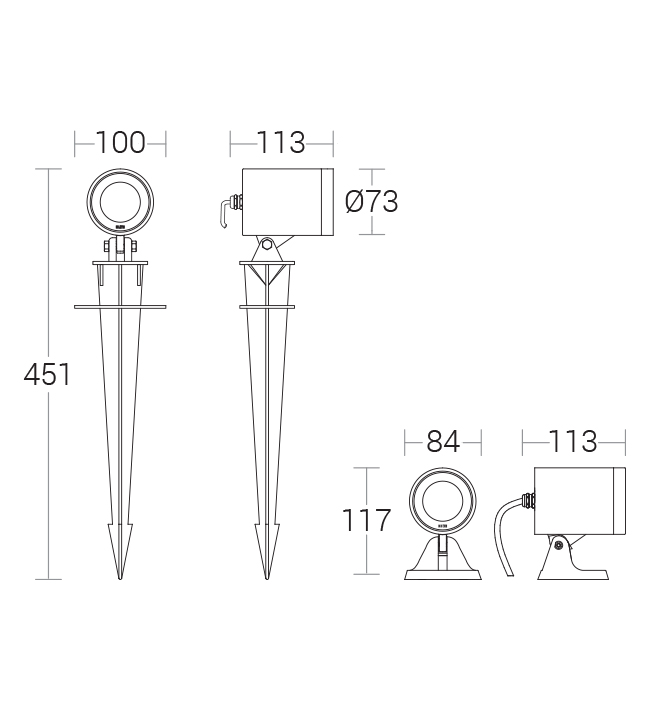

IDWattageDimension IESPhotometryTechnical DatasheetTechnical Description
KL-8275Tree Strap Accessory1000mm8275.pdf
KL-8308Anti-Glare Visor AccessoryØ76 x 76mm8308.pdf
KL-8334Honey Comb Louvre AccessoryØ49 x 2mm8334.pdf
KL-8309Spill Control Snoot AccessoryØ76 x 100mm8309.pdf
KL-8343Tree Strap Clamp Accessory60 x 30 x 10mm8343.pdf
KL-4284GU10 Holder113 x 84 x 117mm4284.pdf
KL-4284.txt
KL-4283GU10 Holder113 x 100 x 451mm4283.pdf
KL-4283.txt
