In-Ground Luminaires

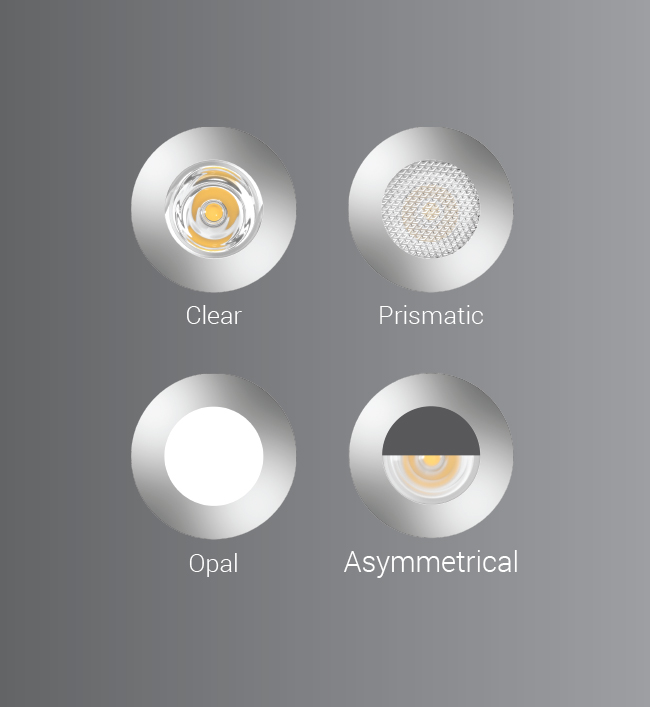

MICROLED are compact IP67 LED fittings suitable for down light, Wall recessed and walkover for both indoor & outdoor applications. Small dimension with flush mounting installation. It is equipped with a screwless round front ring in STAINLESS STEEL with Symmetrical & Asymmetrical. These fixtures are perfect for creating very defined effects of accent light. On request, these luminaires are also available in Red, Green, Blue and Amber.

Product Description
• Luminaire body and screwless front ring made from solid billet of 316 grade stainless steel.
• Silicone seal gasket ensures IP67 rating.
• Toughened glass of 4mm thickness.
• Clear polycarbonate optical lens.
• Luminaire hard wired with 2 x 0.5mm2 cable of 0.5 metre length.
• Supplied with mounting sleeve for preparing recessed opening in ground or wall.
• Non integral constant current power supply.
• Ordering guide : KL-4085-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.
• Options : Red / Green / Blue / Amber ( On Request ).

Product Benefits
• High luminous efficiency at reduced wattage.
• Compact luminaire provides distinctive lighting effects for wall architecture
& accent lighting.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

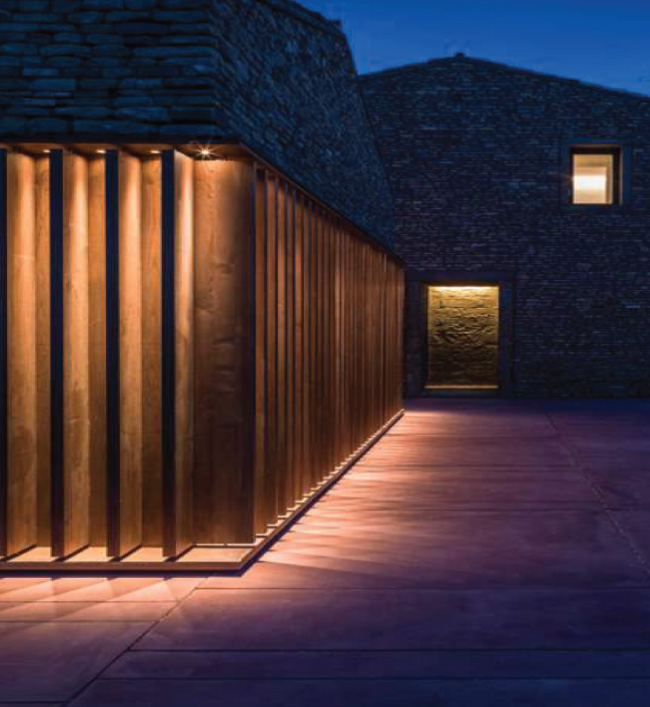

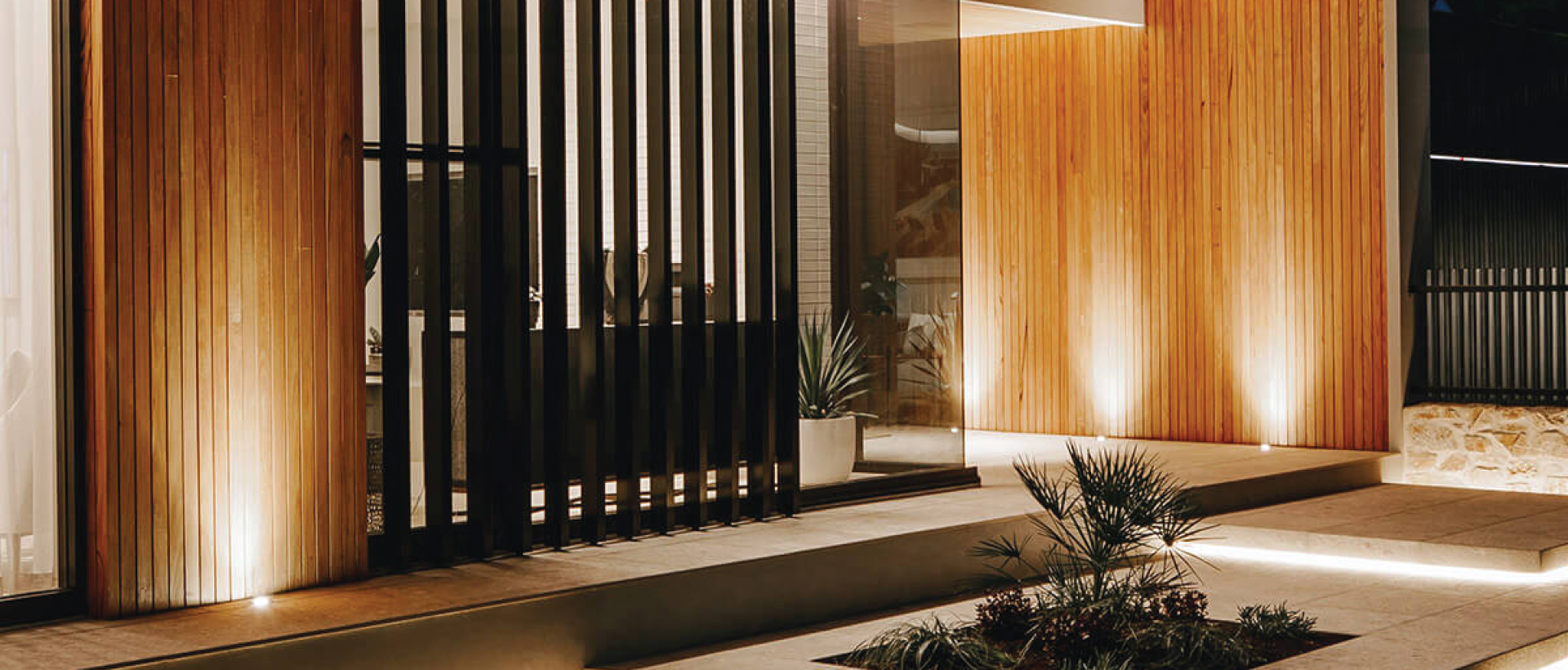

Walk ways, Facades, Landscapes, Architectural facade elements.

Accessory
• Supplied with IP67 rated connector for a secure connection to the network.
• ABS Plastic outer costing for easy installation.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-82421W (3-5)V, 300mA
KL-82444-8W (12-24)V, 300mA
KL-82458-12W (24-42)V, 300mA
KL-82463W (3-5)V, 600mA
KL-82479-15W (9-15)V, 900mA

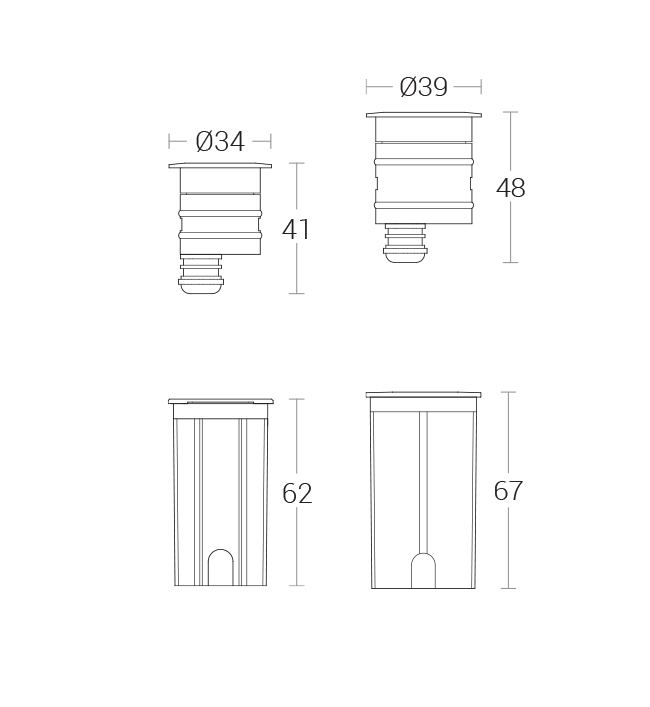

KL-40851W LED 2700K,3000K,4000K,5700K BA:40°, Clear,Opal,PrismaticØ34 x 62 mmKL-4085-BA40D-NW.IES
KL-4085-BA40D-NW.PDF
4085.pdf
KL-40863W LED 2700K,3000K,4000K,5700K BA:24°,8°,12°,40°,60°,40°x11°, Clear,Opal,PrismaticØ39 x 67mmKL-4086-BA8°-WW.IES
KL-4086-BA12°-WW.IES
KL-4086-BA24°-WW.IES
KL-4086-BA8°-WW.PDF
KL-4086-BA12°-WW.PDF
KL-4086-BA24°-WW.PDF
4086.pdf
