Navira Mini

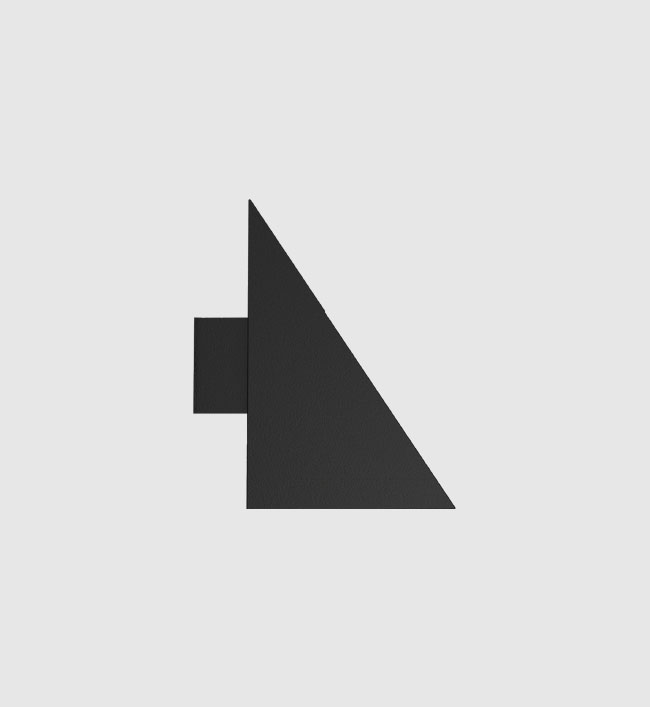

“Navira Mini” wall luminaire,is an innovative design options to provide visual integration with the environment.Aesthetically shaped wall mounted luminaire with fully shielded light source for striking light effects.Product offered asymmetrical light distribution.

Product Description
• Luminaire made of die cast aluminium & non corrosive stainless steel fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 30W LED.
• Die cast aluminium base for easy installation onto the wall.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4971-CCT (Colour Temperature)
• Available CCT : 2700K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly, moisture proof,insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

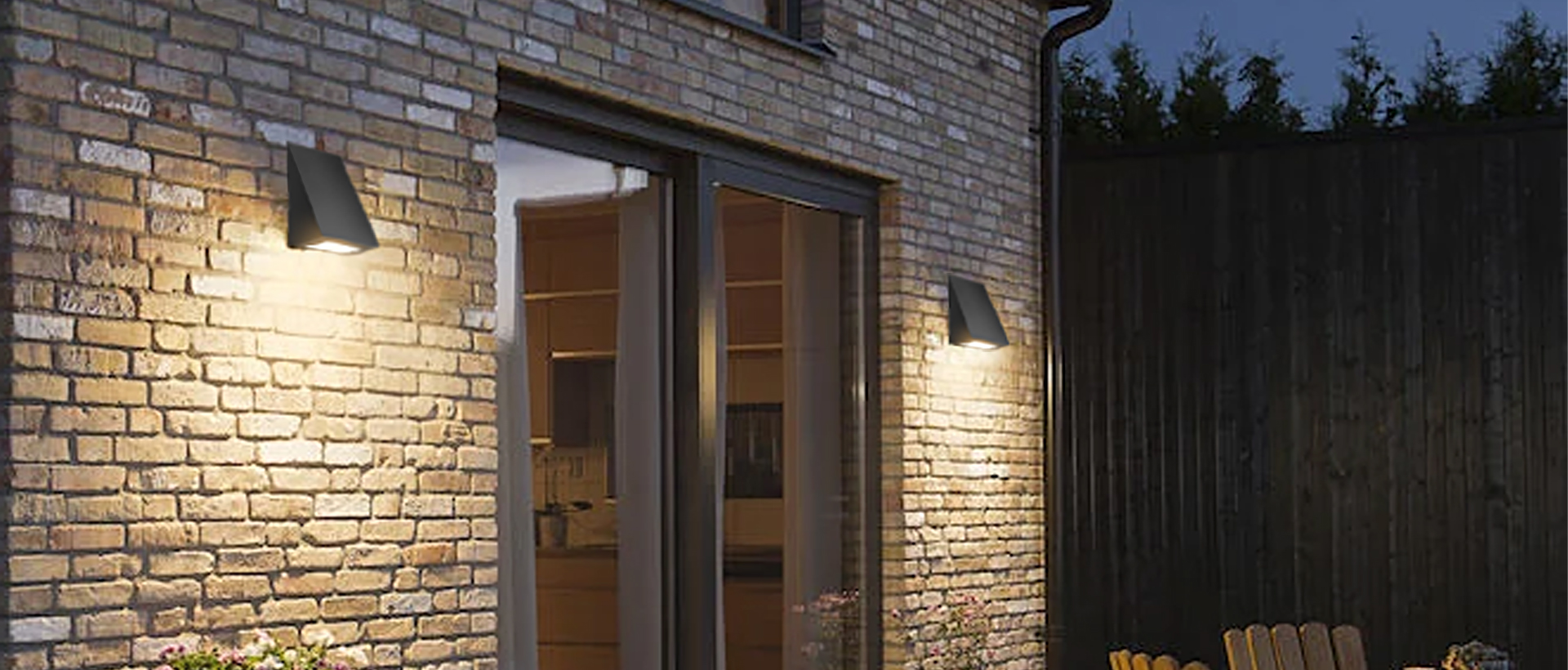

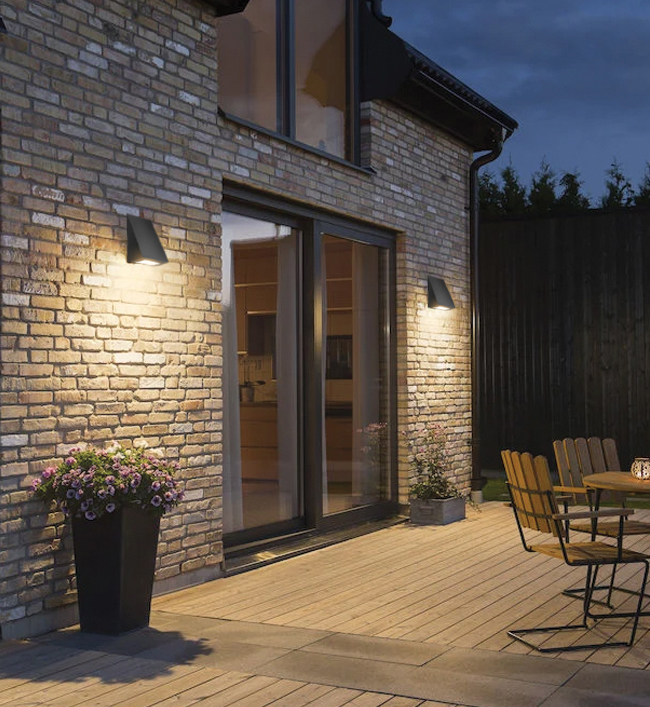

Residential,Building facade,Commercial centres,Passages,Pathways,Sculptures and Structures.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

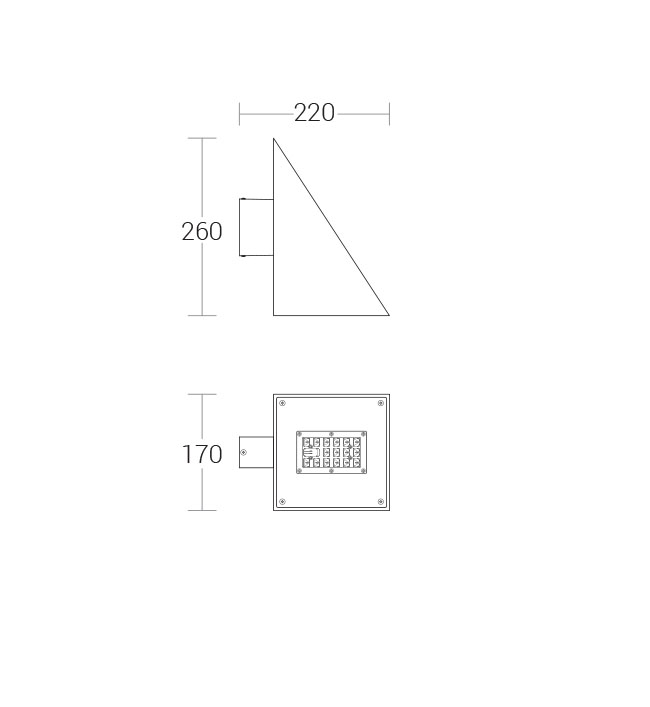

KL-444450W LED 3000K,4000K,5700K BA:Type II, Polycarbonate Optical Lens220 x 170 x 260mmN13
W33
Detailed Foundation Drawing
4444.pdf
KL-497130W LED 3000K,4000K,5700K BA:Type II, Polycarbonate Optical Lens220 x 170 x 260mmN13
W33
Detailed Foundation Drawing
KL-4971-BATYPEII-WW.IES
KL-4971-BATYPEII-NW.IES
KL-4971-BATYPEII-CW.IES
KL-4971-BATYPEII-WW.PDF
KL-4971-BATYPEII-NW.PDF
KL-4971-BATYPEII-CW.PDF
4971.pdf
KL-4971.txt
