Navira Mini

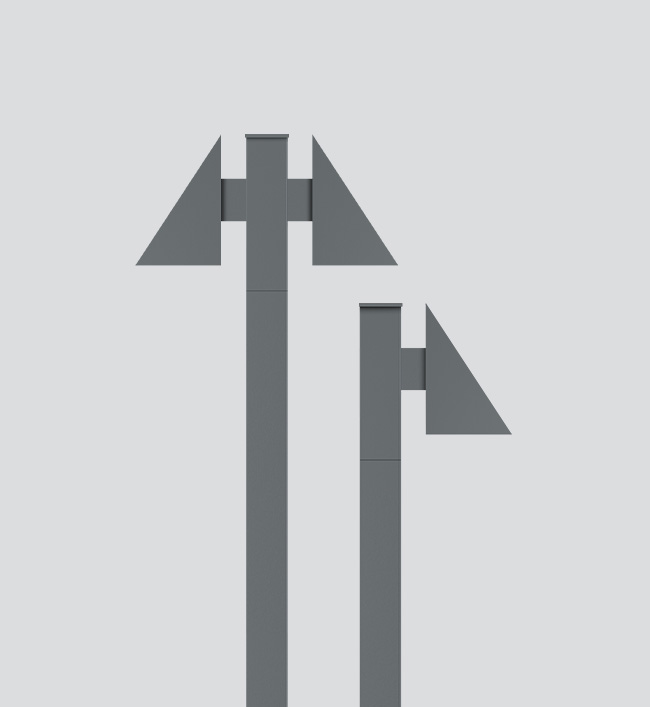

“Dual Navira Mini” pathway luminaire,is an innovative design options to provide visual integration with the environment.Aesthetically designed sturdy construction ensures a long life against all weather condition,maintaining initial performances through the lifetime of the installation.Product offered asymmetrical light distribution.

Product Description
• Luminaire made of die cast aluminium with non corrosive SS fasteners.
• Polycarbonate optical lens.
• Luminaire integrated with 100W LED.
• Suitable for mounting on 76mm / 88.9mm OD pipe,72mm / 91mm square pipe.
• Extruded aluminium mounting pipe for easy installation onto the pole.
• Surface mounting on wall using hardware after connecting to the power supply.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70.
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4446-CCT (Colour Temperature)
• Available CCT : 2700K,4000K,5700K.

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly,moisture proof,insect free.
• Low maintenance cost.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Illuminating parks,Gardens,Private driveways,Commercial complex,Pathways in Residential buildings & office complex,Internal passages.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page

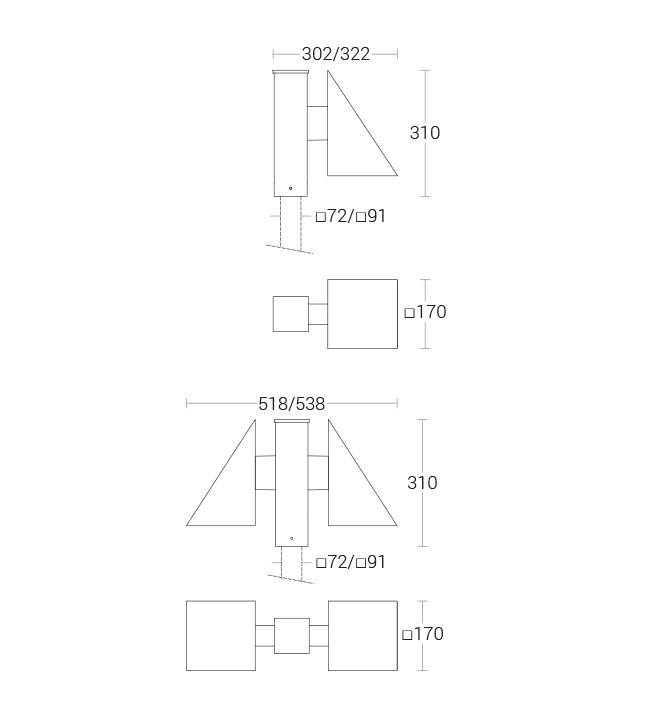

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-443960W LED 3000K,4000K,5700K, Polycarbonate Optical LensD3:527x170x310, D26:538x170x310, D15:518x170x310, D16:538x170x310mmD3
D26
D15
D16
4439.pdf
KL-4446100W LED 3000K,4000K,5700K, Polycarbonate Optical LensD3:527x170x310, D26:538x170x310, D15:518x170x310, D16:538x170x310mmD3
D26
D15
D16
4446.pdf
KL-443830W LED 3000K,4000K,5700K, Polycarbonate Optical LensD3:311x170x310, D26:322x170x310, D15:302x170x310, D16:322x170x310mmD3
D26
D15
D16
4438.pdf
KL-444550W LED 3000K,4000K,5700K, Polycarbonate Optical LensD3:311x170x310, D26:322x170x310, D15:302x170x310, D16:322x170x310mmD3
D26
D15
D16
4445.pdf
