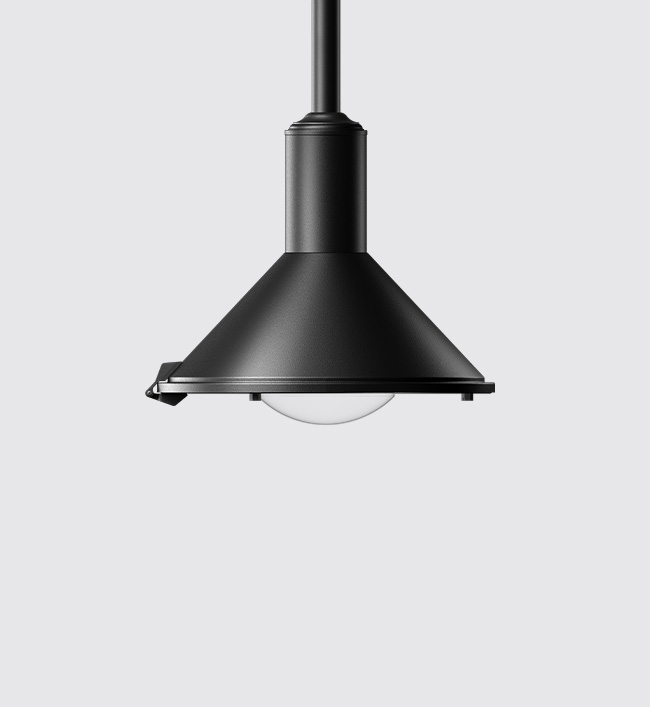

Karona Fort Mini
Karona Fort Mini pathway luminaires is a special purpose outdoor luminaire, integral model, totally weather proof aesthetically contoured. Improved long lasting protection against ingress of dust / moisture / insects inside optical compartment.

Product Description
• Luminaire comprises of specially contoured spun aluminium & extruded aluminium body featuring high strength and anti corrosion.
• Convex type clear acrylic diffuser.
• Luminaire integrated with 50W LED.
• Suitable for mounting to internally threaded pipe of designation M30.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• Suitable for operation on 240V, 50Hz single phase ac supply.
• Ordering guide : KL-4624-CCT (Colour Temperature)
• Available CCT : 3000K, 4000K, 5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Functionally versatile, strong and stable.
• Corrosion resistant and easy maintenance.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption

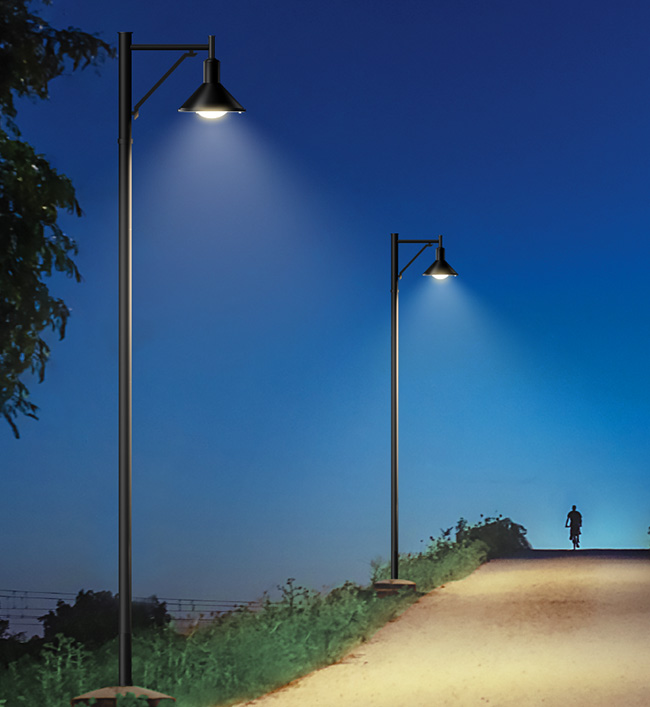

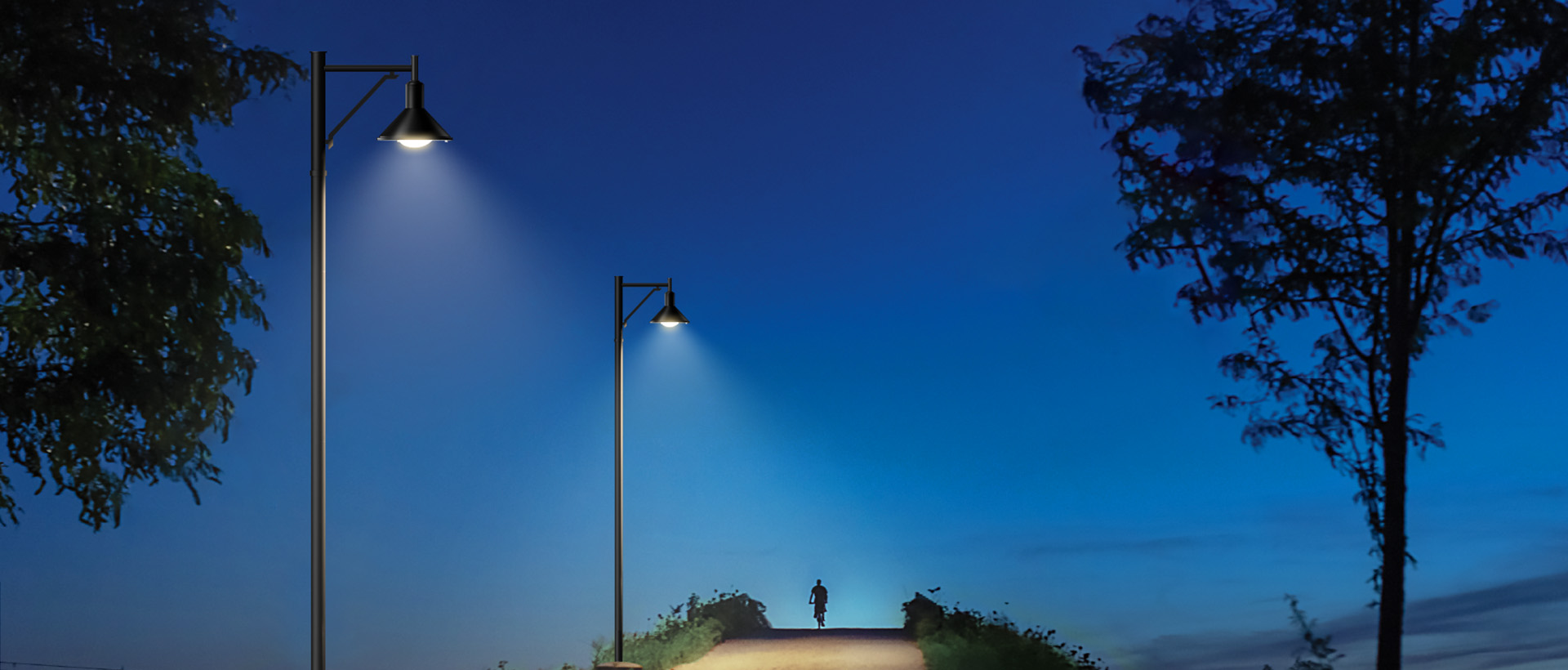

Area of Application
Gardens, Smaller Roadways, Private driveways, Residential Area Lighting, Courtyards, Public area lighting like parks & Squares.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

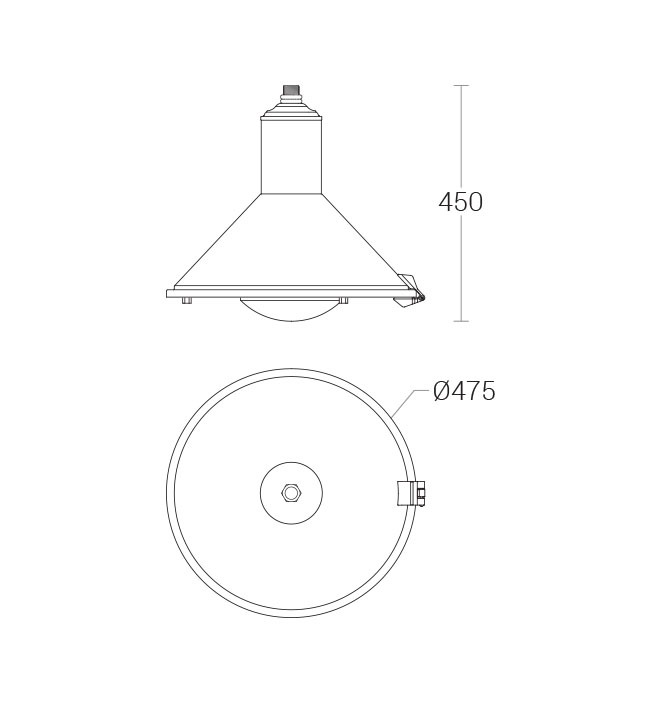

KL-462450W LED 3000K,4000K,5700K BA:Type IV, Clear AcrylicØ475 x 450mmD4
KL-4624.IES
KL-4624.IES
KL-4624.PDF
KL-4624.PDF
4624.pdf
KL-4624.txt
KL-518730W LED 3000K,4000K,5700K BA:Type IV, Clear AcrylicØ475 x 450mmD4
KL-5187.IES
KL-5187.IES
KL-5187.PDF
KL-5187.PDF
5187.pdf
KL-5187.txt
