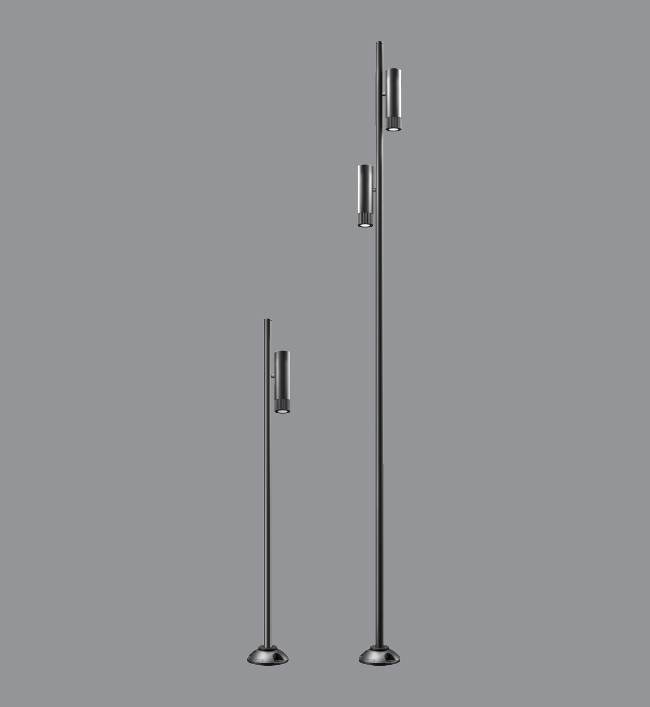

Torch Stix
The environmentally friendly LED garden and pathway luminaires is both sustainability and user comfort. Its emphasis on creating a pleasant light distribution and high visual comfort, they cater to the needs of outdoor spaces while minimizing glare and discomfort for those in the vicinity.

MATERIAL
Body : Extruded aluminium tube (grade 6063)
Diffuser : Clear toughened glass
Impact Protection : IK06
Ingress Protection : IP65
Gasket : Silicone
Mounting : Pressure die cast aluminium mounting base

ELECTRICAL
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz

PRODUCT CONFIGURATIONS
Wattage : 1 x 6W / 2 x 6W LED
Optical Beam Angle : 12° / 24° / 40°
CCT : 2700K / 3000K / 4000K / 6500K
LED Life Time : L70 B10 60,000 H

AREA OF APPLICATION
Suitable for low traffic areas.

AVAILABLE FINISH
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

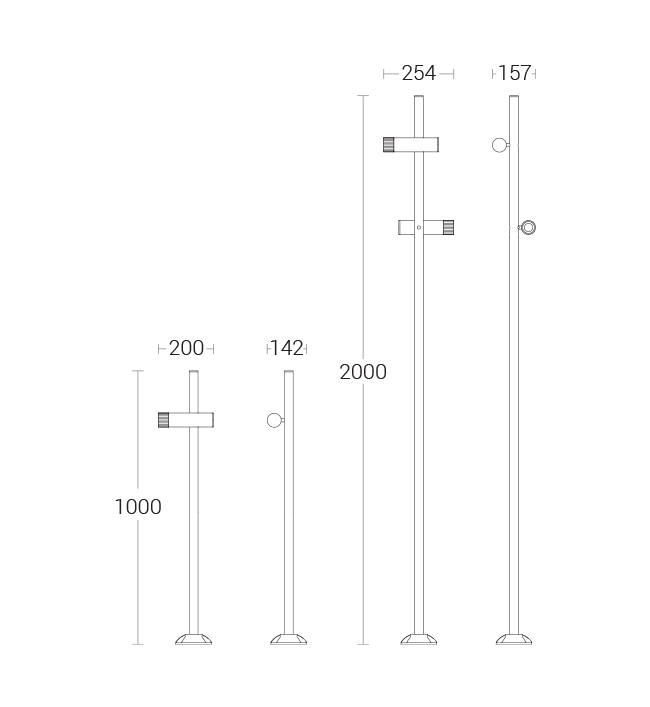

227971 x 6W / 2 x 6W 2700K,3000K,4000K,6500K BA:12°,24°,40°, Clear Toughened Glass200 x 142 x 1000 / 254 x 157 x 2000mmM57
Detailed Foundation Drawing
22797.pdf
22797.txt
