Aluminium Lighting Pole is a contemporary design that is both timeless and unique in its impression. Compact without visible mounting equipment and optimised integration, this series is in perfect continuity with the geometric lines & minimalist design. These assemblies are ideal for surroundings of contemporary architectural constructions.

Product Description
• Pole made of extruded aluminium alloy (grade 6063) can achieve high strength and corrosion resistance in various atmospheric conditions.
• Pole design parameters vary depending on the type of bracket and loading factor.
• All pole sections are welded using special v groove technique by certified welders using high end MIG welding processes.
• The control gear tray is prewired with MCB, terminal connectors for loop-in / loop-out arrangement.
• Built-in control box with service door and vandal resistant loss proof screw.
• Die cast aluminium door is contoured to the shape of the pole with silicone rubber gasket.
• The foundation bolt holes in the base plate are designed to be elongated for fine adjustments / alignment of the pole during installation.
• Base plate made of steel grade E250 & foundation bolt of grade 4.6.
• Integrated with LED Modules.
• Earth connection
• Safety class I
• CE- Conformity mark
• BIS - Conformity mark

Product Benefits
• Innovative Design options to provide Visual integration with the environment.
• High Brightness, LED Light source do not pose any environment risks.
• Designed for highest efficiency in terms of more lumens at reduced wattages contributing to a Greener World.
• Customised for your delight : Creating the entire product portfolio - Right from concept to completion, merging the best technology and practices in lighting.

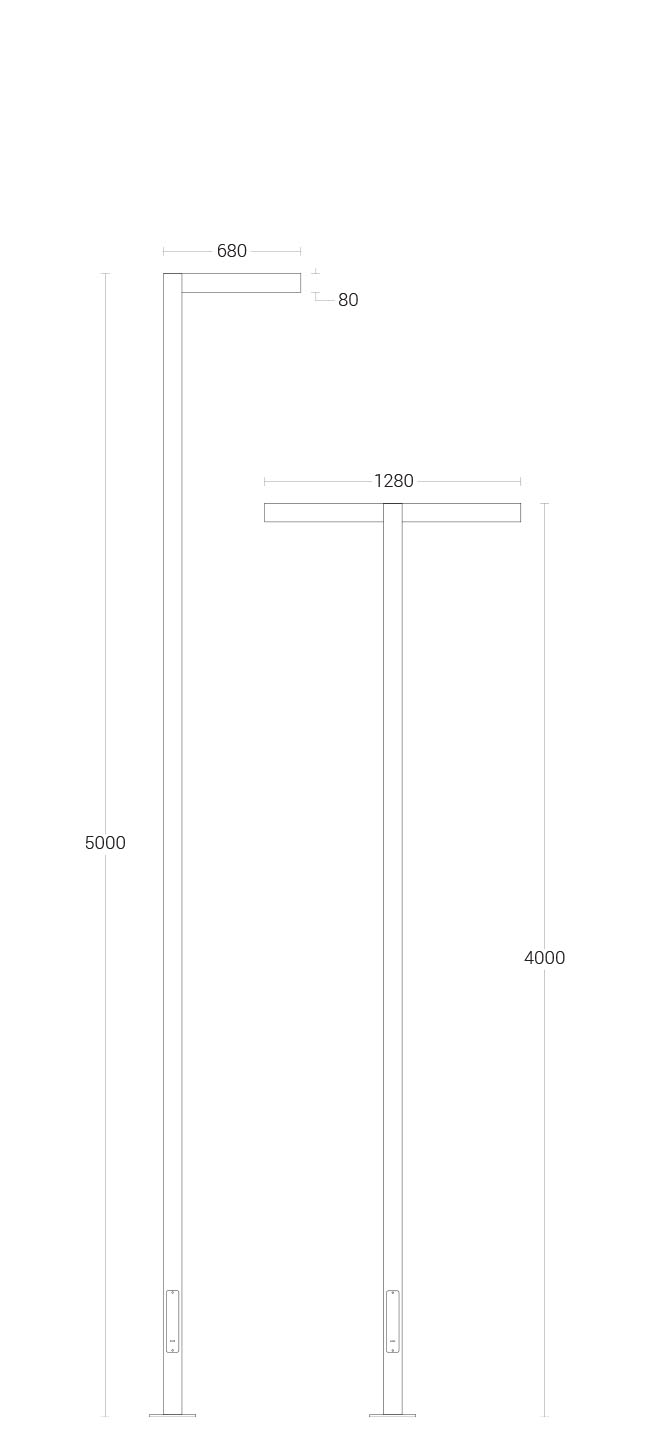

• A wide range of Pole heights and bracket options to meet various lighting requirements.
• Excellent Corrosion resistant.
• Quick installation and low assembly costs.
• Functionally versatile, strong and stable.
• Long life span with very low maintenance.

Area of Application
Illuminating pathways in parks, Smaller Roadways, Private driveways, Residential Area Lighting, Courtyards & Squares.

Installation
Surface mounted with base plate and fitted on a pre formed foundation.

Available Finish
Coated with zinc rich primer and finished using environmentally stable polyurethane based paint / Pure polyester powder coated of desired colour.
• RAL 9004 Black
• RAL 9007 Grey aluminium
• RAL 7016 Anthracite grey
• Graphite grey
