Aluminium Lighting Pole is a contemporary design that is both timeless and unique in its impression. Compact without visible mounting equipment and optimised integration, this series is in perfect continuity with the geometric lines & minimalist design. These assemblies are ideal for surroundings of contemporary architectural constructions.

Product Description
• Pole made of extruded aluminium alloy (grade 6063) can achieve high strength and corrosion resistance in various atmospheric conditions.
• Pole design parameters vary depending on the type of bracket and loading factor.
• All pole sections are welded using special v groove technique by certified welders using high end MIG welding processes.
• The control gear tray is prewired with MCB, terminal connectors for loop-in / loop-out arrangement.
• Built-in control box with service door and vandal resistant loss proof screw.
• Die cast aluminium door is contoured to the shape of the pole with silicone rubber gasket.
• The foundation bolt holes in the base plate are designed to be elongated for fine adjustments / alignment of the pole during installation.

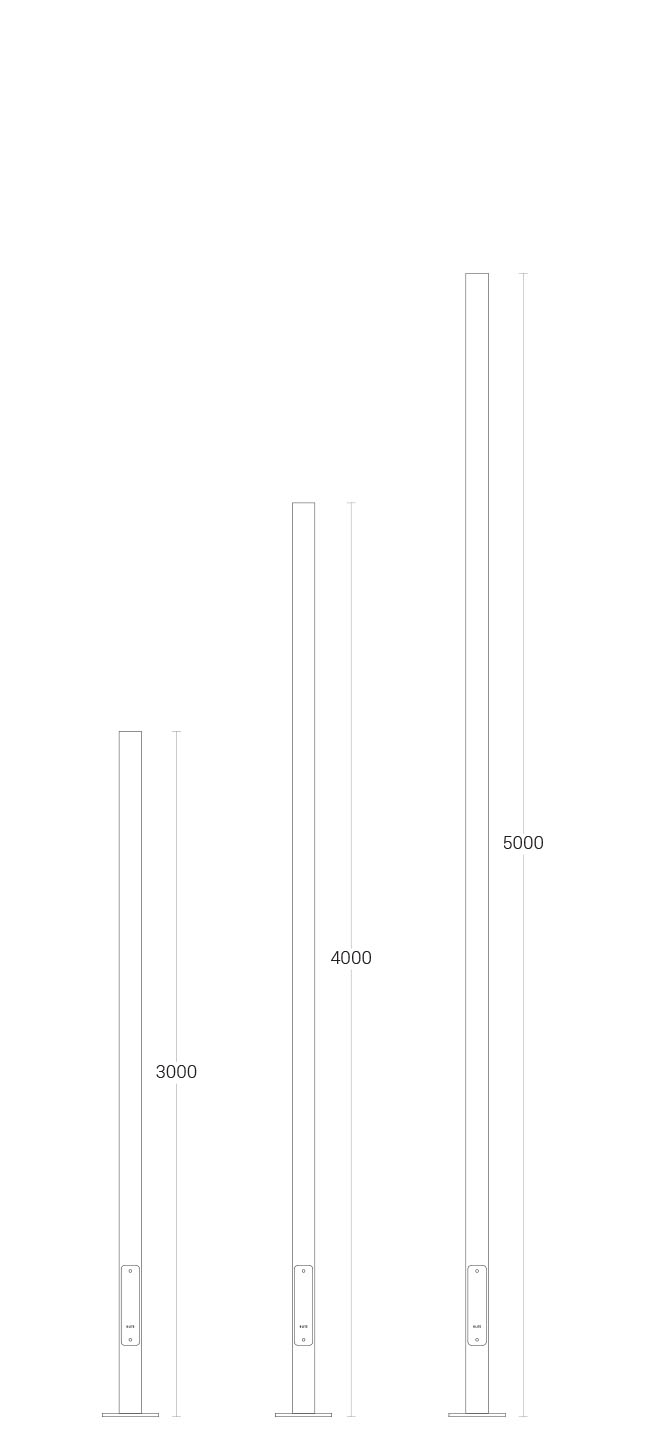

• Base plate made of steel grade E250 & foundation bolt of grade 4.6 for 5000mm / Base plate made of die-cast aluminium for 3000mm / 4000mm.
• CE - Conformity mark

Product Benefits
• Innovative Design options to provide Visual integration with the environment.
• Customised for your delight : Creating the entire product portfolio - Right from concept to completion, merging the best technology and practices in lighting.
• A wide range of Pole heights and bracket options to meet various lighting requirements.
• Excellent corrosion resistant.
• Quick installation and low assembly costs.
• Functionally versatile, strong and stable.
• Long life span with very low maintenance.

Area of Application
Illuminating pathways in parks, Smaller Roadways, Private driveways, Residential Area Lighting, Courtyards & Squares.

Installation
Surface mounted with base plate and fitted on a pre formed foundation.

Available Finish
Coated with zinc rich primer and finished using environmentally stable polyurethane based paint / Pure polyester powder coated of desired colour.
• RAL 9004 Black
• RAL 9007 Grey aluminium
• RAL 7016 Anthracite grey
• Graphite grey
