Iyra Midi
"Iyra" pendant and surface-mounted LED ceiling luminaires are an ideal lighting solution for a wide range of architectural and commercial applications. Engineered with high-performance LED technology, they deliver excellent luminous efficacy, low energy consumption, and an extended operational life. Designed to perform efficiently across low to high mounting heights, Iyra luminaires provide uniform, comfortable illumination with reliable performance. Their robust construction and versatile design make them suitable for installation on a variety of ceiling types in both indoor and outdoor environments, offering a perfect balance of aesthetics, durability, and energy efficiency.

Material
Body : Extruded Aluminium (grade 6063)
Impact Protection : IK08
Ingress Protection : IP65
Diffuser : Clear Toughened glass
Mounting : Surface / Pendant

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV

Product Configurations
Wattage : 30W LED
Optical Beam Angle : 12° / 24° / 40°
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 60,000 H

Area Of Application
Lobbies & Foyers, Retail outlets, Corridors, Corporate, Residential & Educational premises, Hospitality Industry, Commercial & Business Centers.

Available Finish
Pure polyester powder coated
RAL 9004 Black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey
RAL 9016 Traffic White
Graphite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

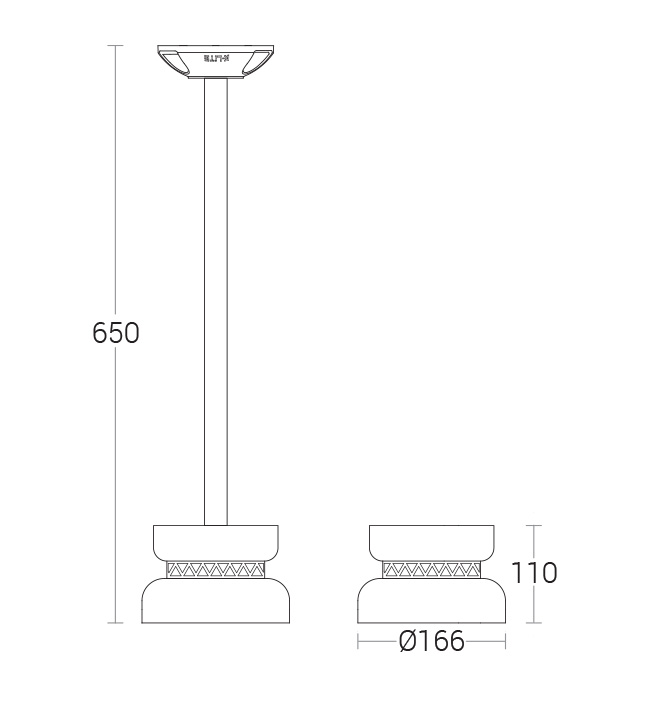

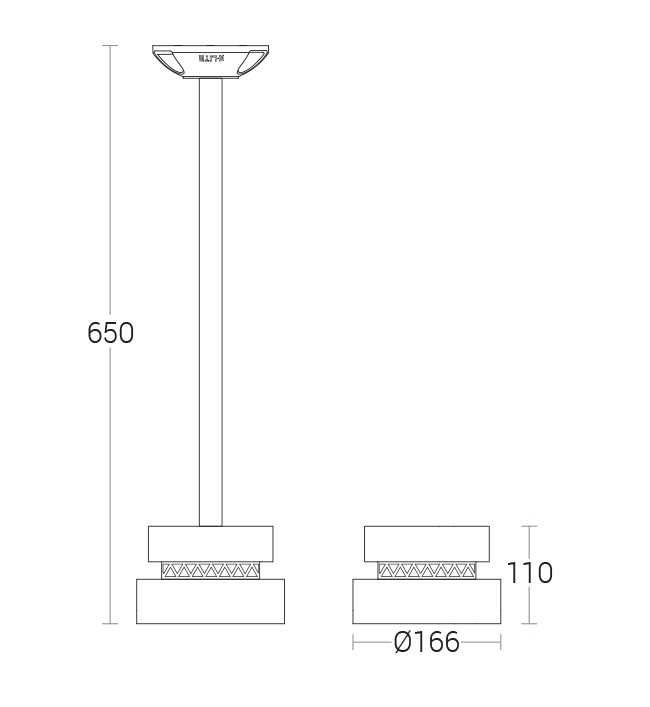

2278030W LED 2700K,3000K,4000K,5700K BA:12°,24°,40°, Clear Toughened GlassØ166 x 138, Ø166 x 650mm22780.pdf
22780.txt
