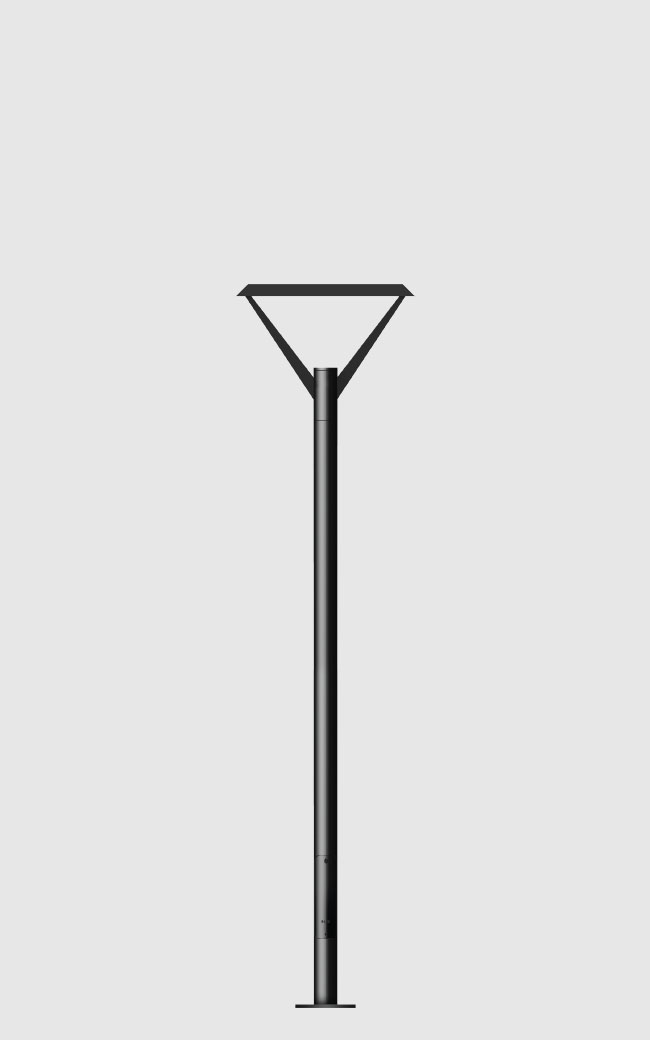

Stencil Pro
The Stencil Pro column lighting is a versatile and sophisticated addition to architectural lighting designs. It complements both modern and classic architecture suggests a timeless aesthetic. The emphasis on visual comfort and security through ambient lighting in open spaces is crucial for creating inviting environments, especially during the night.

Material
Body : Extruded aluminium alloy (grade 6063) & Gravity die-cast aluminium
Impact Protection : IK08
Ingress Protection : IP65
Diffuser : Satin acrylic
Gasket : Silicone compression gasket
Glare Control : Slight regress in the optical assembly for better glare control
Mounting : Die cast aluminium mounting plate with an anchorage unit made out of hot dip galvanised steel.

Electrical
Driver : Standard
Power Supply : Integral
Input Voltage : 230-240Vac / 50-60 Hz
Surge : 4KV


Product Configurations
Wattage : 40W
Light Distribution : Symmetrical
CCT : 2700K / 3000K / 4000K / 5700K
LED Life Time : L70 B10 50,000 H

Area of Application

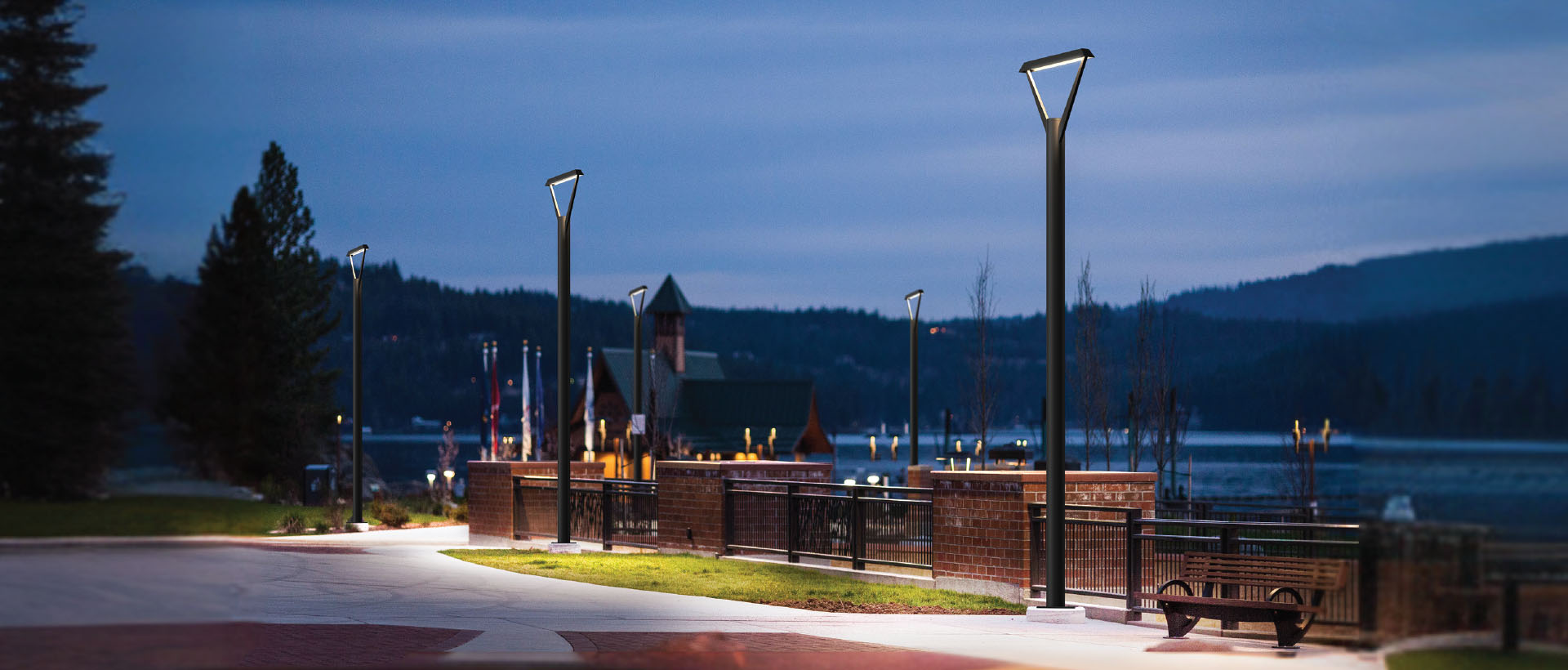

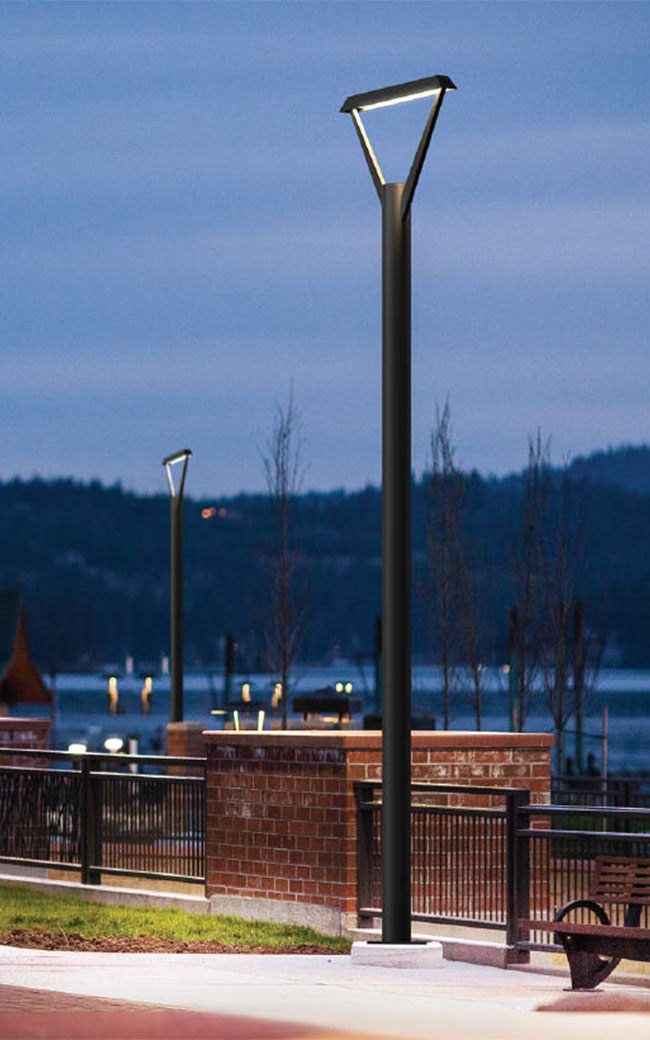

Suitable for Private & Public areas, Illuminating Driveways, Pathways, Building surrounds, Entrances, Squares & Gardens, Promenades.

Available Finish
Pure polyester powder coated
RAL 9004 Signal black
RAL 9007 Grey aluminium
RAL 7016 Anthracite grey

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-4251LED 2700K,3000K,4000K,5700K BA:Symmetrical, Satin AcrylicM15

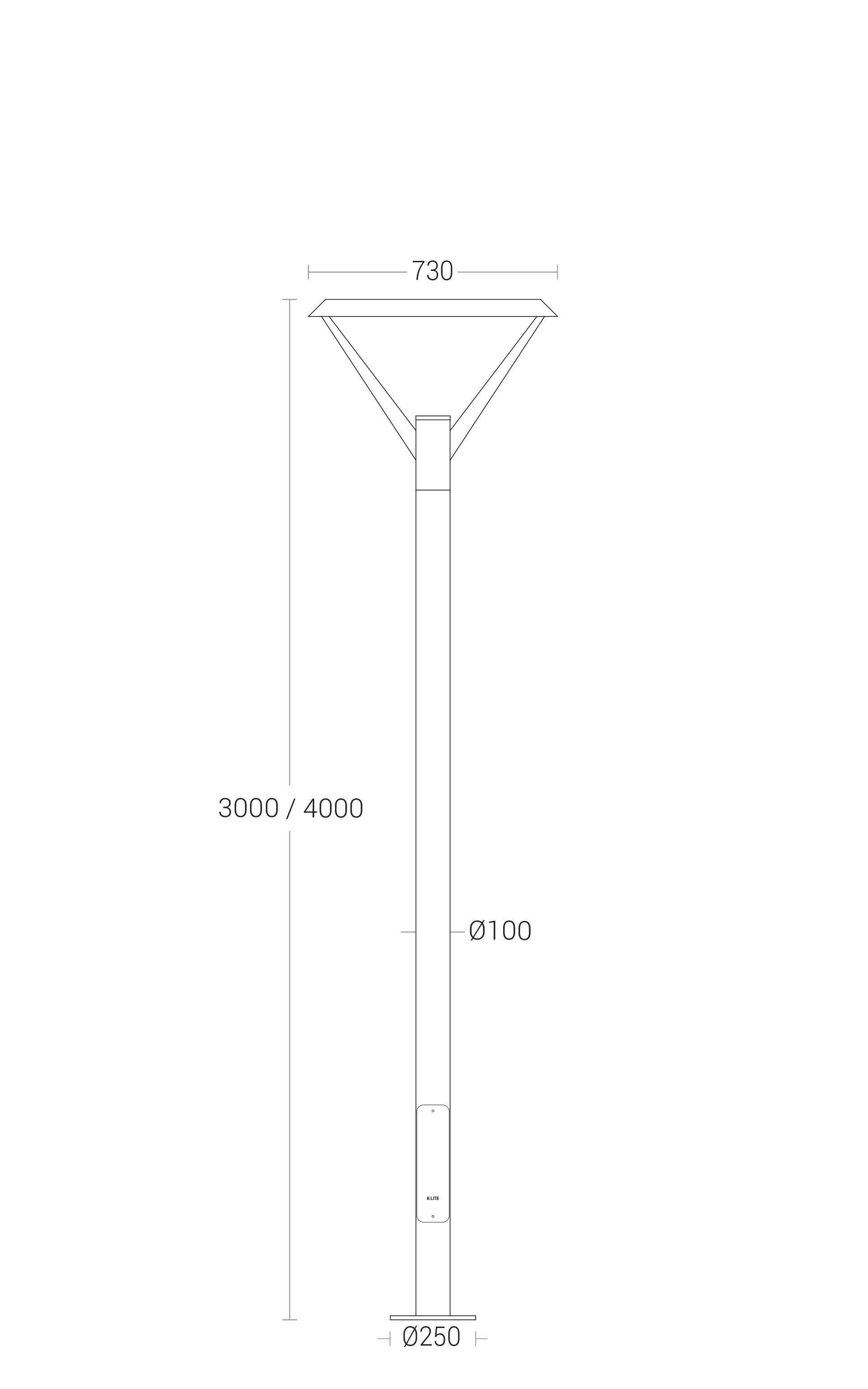

Detailed Foundation Drawing
KL-4251-BA--2700K.IES
KL-4251-BA--2700K.PDF
4251.pdf
