Avenue
One of the key features of Avenue street lights is their energy efficiency. Equipped with state-of-the-art LED technology,these lights consume significantly less energy than traditional street lights,which means lower electricity bills and a reduced environmental footprint.
Plus,with a long lifespan of at least 60,000 hours,you won't need to worry about frequent replacements or maintenance.

Product Description
• Luminaire made of pressure die cast aluminium alloy of high corrosion resistance and non corrosive stainless steel fasteners.
• Clear toughened glass.
• Silicone gasket.
• Suitable for Mounting on 38mm / 60mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >70 (>80 On Request).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-4391-CCT (Colour Temperature)
• Available CCT : 3000K,4000K,5700K.

Product Benefits
• Functionally versatile, strong and stable.
• Corrosion resistant and maintenance free.
• Quick installation and low assembly costs.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

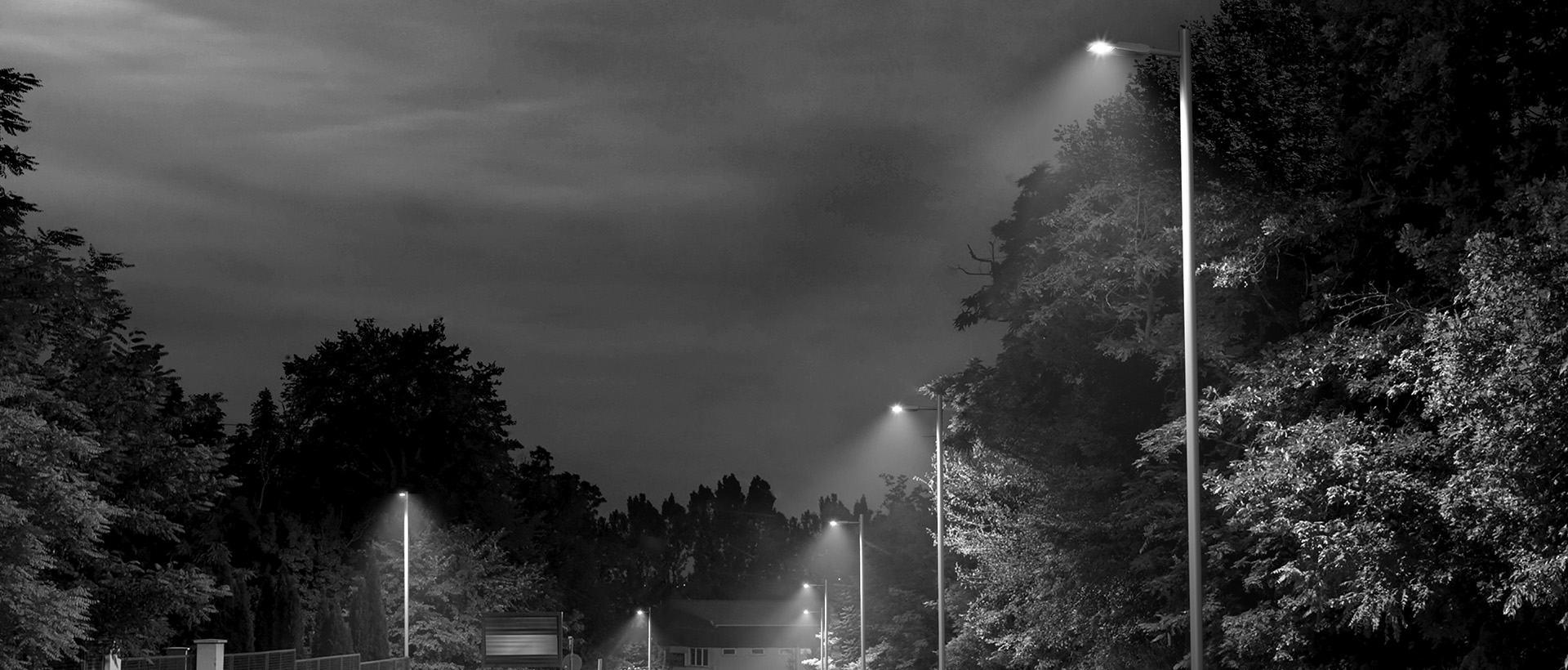

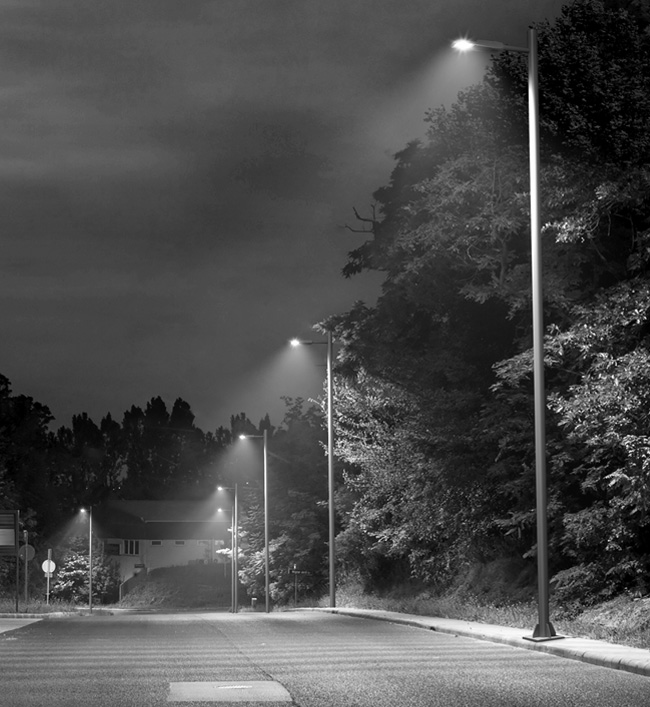

Illuminating parks,Gardens,Commercial complex,Private driveways,Street lighting,Smaller roadways,Residential area lighting.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

Downloads
Catalogue Page
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

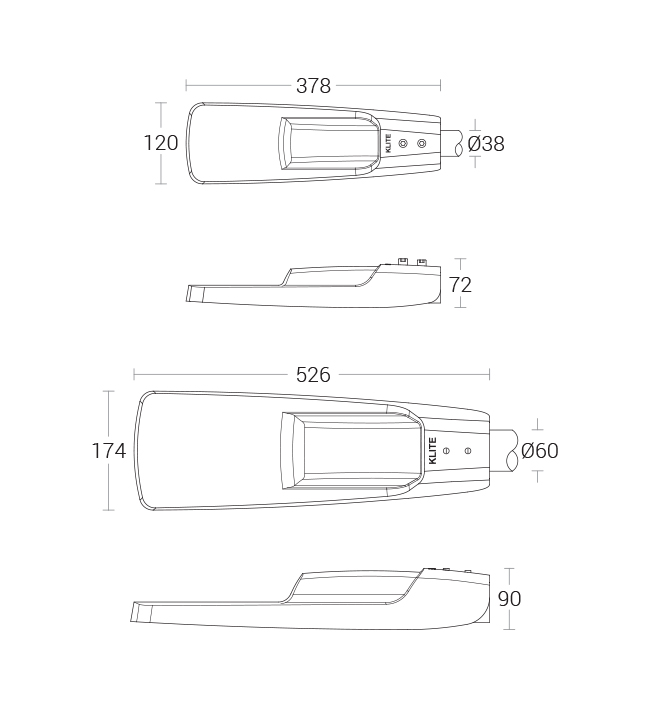

KL-4392Upto 100W LED 3000K,4000K,5700K BA:Type IV,Type II,Type III, Clear Toughened Glass526 x 174 x 90mmD2
KL-4392.IES
KL-4392.IES
KL-4392.IES
KL-4392-BATYPEIII-NW.IES
KL-4392.IES
KL-4392.IES
KL-4392.IES
KL-4392.PDF
KL-4392.PDF
KL-4392.PDF
KL-4392-BATYPEIII-NW.PDF
KL-4392.PDF
KL-4392.PDF
KL-4392.PDF
4392.pdf
KL-4391Upto 40W LED 3000K,4000K,5700K BA:Type IV,Type II,Type III, Clear Toughened Glass378 x 120 x 72mmD6
KL-4391.IES
KL-4391.IES
KL-4391.IES
KL-4391-BATYPEIII-NW.IES
KL-4391.IES
KL-4391.IES
KL-4391.IES
KL-4391.PDF
KL-4391.PDF
KL-4391.PDF
KL-4391-BATYPEIII-NW.PDF
KL-4391.PDF
KL-4391.PDF
KL-4391.PDF
4391.pdf
