Romina
Our modern heritage post top luminaire combines classic aesthetics. Equipped with high-performance light engines, it delivers superior illumination while optimizing energy efficiency. The robust construction ensures resilience against all weather conditions,promising long-term durability and consistent performance throughout its lifespan. Designed to provide maximum lumens with reduced wattages.

Product Description

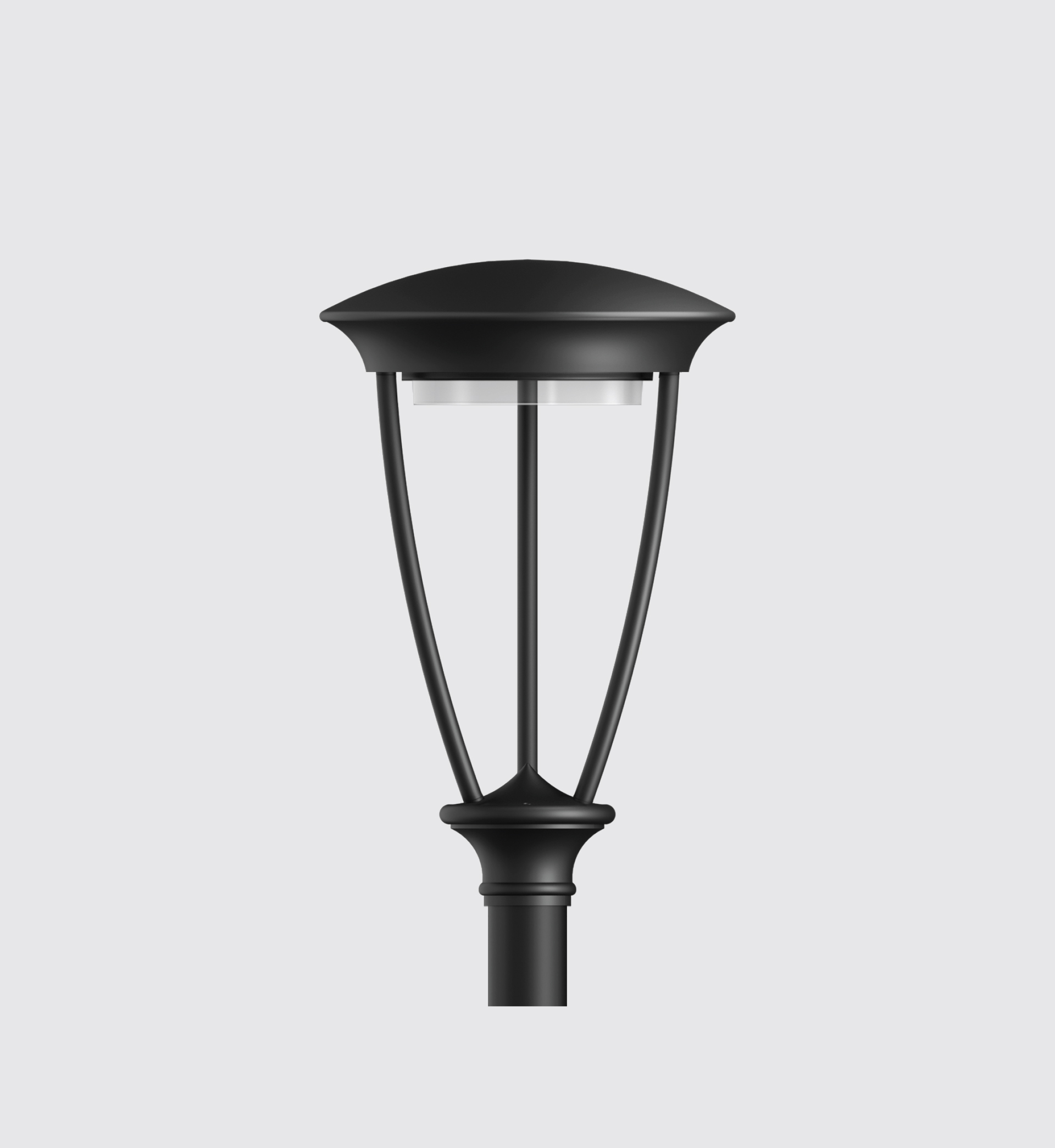

• The luminaire comprises of spun aluminium top cover.
• Die cast aluminium base through supporting arms made of extruded aluminium.
• Diffuser placed into the provision formed on the pheriphery of the bottom cover.
• Non yellowing UV stabilized clear acrylic diffuser.
• Silicone gasket.
• Luminaire integrated with 30W/50W LED.
• Luminaires suitable for mounting on 76mm OD pipe.
• Cable entries for through-wiring of mains supply cable
• Integral constant current power supply
• CRI (Ra) : >70
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-5445-CCT (Colour Temperature)
• Available CCT : 3000K,4000K,5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegant,Functionality
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

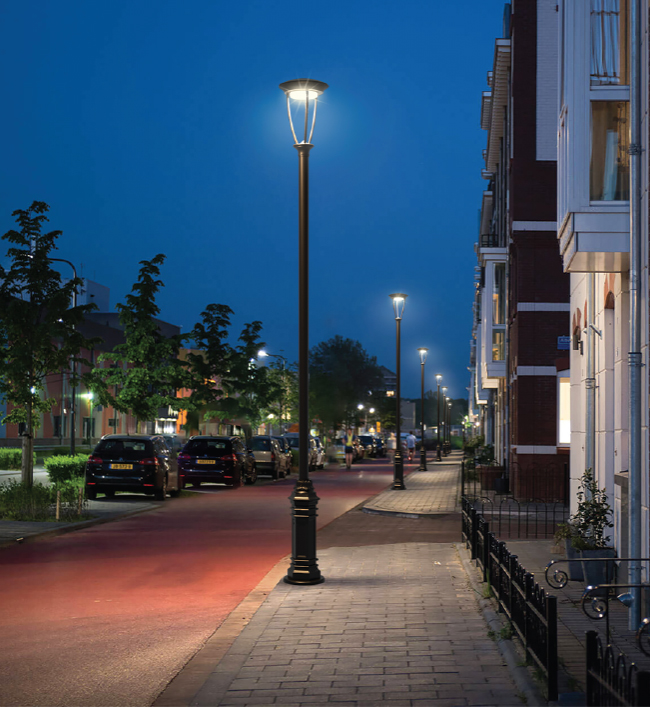

Illuminating parks,Gardens,commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
• Pure polyester powder coated
• RAL 9004 Signal black
• RAL 9007 Grey aluminium
• RAL 7016 Anthracite grey
• Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

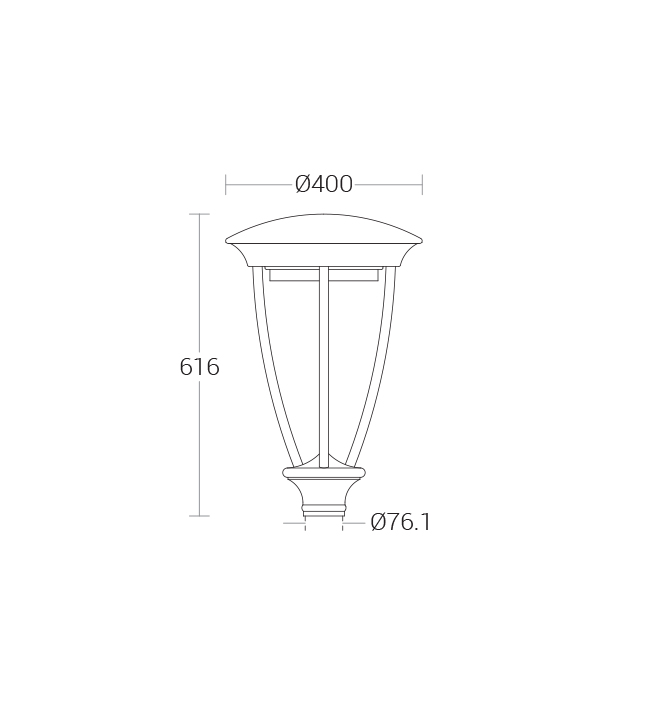

KL-449330W LED 3000K,4000K,5700K BA:Symmetrical, Clear AcrylicØ400 x 616mmD3
4493.pdf
KL-452330W LED 3000K,4000K,5700K BA:Type IV, Clear AcrylicØ400 x 616mmD3
KL-4523-BAASYMMETRICAL-WW.IES
KL-4523-BAASYMMETRICAL-CW .IES
KL-4523-BAASYMMETRICAL-NW.IES
KL-4523-BAASYMMETRICAL-WW.PDF
KL-4523-BAASYMMETRICAL-CW .PDF
KL-4523-BAASYMMETRICAL-NW.PDF
4523.pdf
KL-452450W LED 3000K,4000K,5700K BA:Type IV, Clear AcrylicØ400 x 616mmD3
KL-4524-BAASYMMETRICAL-WW.IES
KL-4524-BAASYMMETRICAL-CW.IES
KL-4524-BAASYMMETRICAL-NW.IES
KL-4524-BAASYMMETRICAL-WW.PDF
KL-4524-BAASYMMETRICAL-CW.PDF
KL-4524-BAASYMMETRICAL-NW.PDF
4524.pdf
KL-544550W LED 3000K,4000K,5700K BA:Symmetrical, Clear AcrylicØ400 x 616mmD3
KL-5445-BASymmetrical-WW.IES
KL-5445-BASymmetrical-CW.IES
KL-5445-BASymmetrical-NW.IES
KL-5445-BASymmetrical-WW.PDF
KL-5445-BASymmetrical-CW.PDF
KL-5445-BASymmetrical-NW.PDF
5445.pdf
