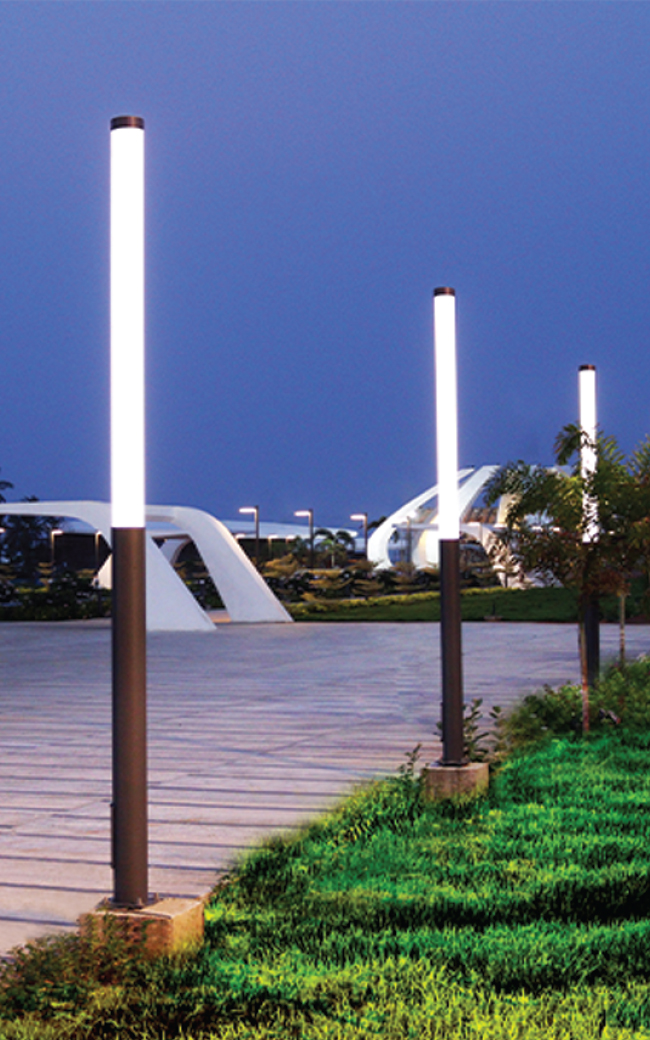

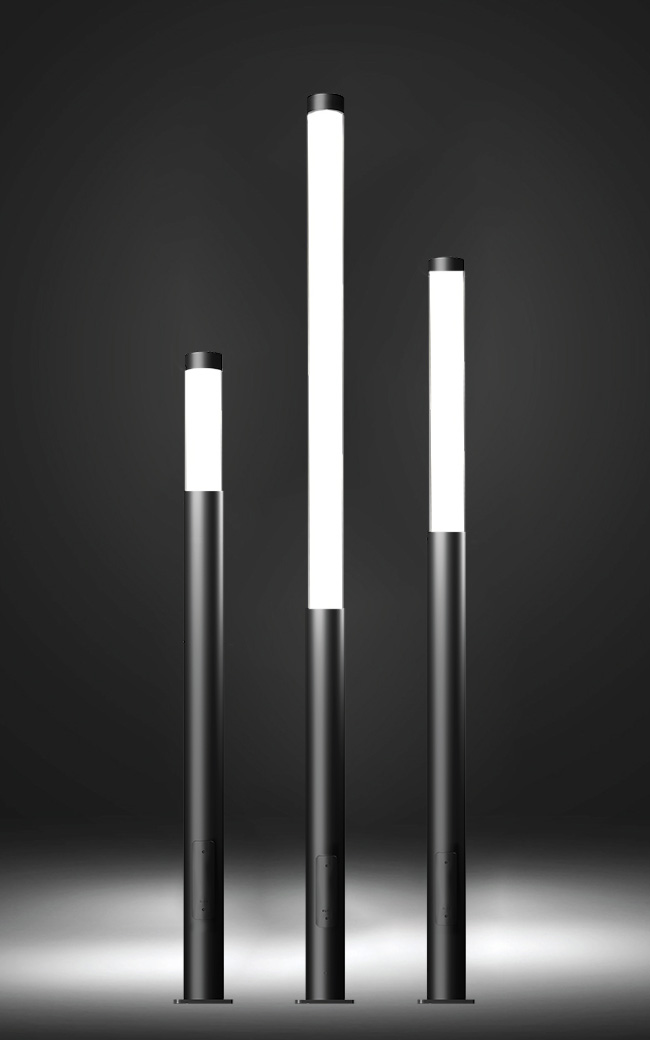

Column Light
Elegant column lighting feature,which is suitable for both modern and classic architecture.Ideal for creating orientation with exceptional visual comfort.
These luminaries offer general ambient light in open spaces giving a sense of security in night-time.
Clean Lines and pure form are the underlying elements in this series of column light,designed to provide rotationally symmetrical illumination,Light emission 360°.

Technical Specifications
• Luminaire made of extruded aluminium alloy (grade 6063) with die-cast aluminium components and non corrosive SS fasteners.
• Shielded light.
• For optimum illumination,these luminaries can be supplied in different heights.
• Non yellowing UV stabilized translucent polycarbonate diffuser.
• Silicone gasket.
• Die-cast aluminium mounting plate with an anchorage unit made out of hot dip galvanised steel for extra guarantee against corrosion.Luminaire can be aligned on the mounting plate around 360°.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply.
• CRI (Ra) : >80 (90 CRI - On Request).
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-7018-CCT (Colour Temperature)
• Available CCT : 2700K, 4000K, 5700K.

Product Benefits
• Practical.Elegant.Efficient.
• Timeless modern design options.
• Easy to maintain,robust and durable construction.
• Soft diffused lighting protects pedestrians from glare and provides distinctive lighting with exceptional visual comfort.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application

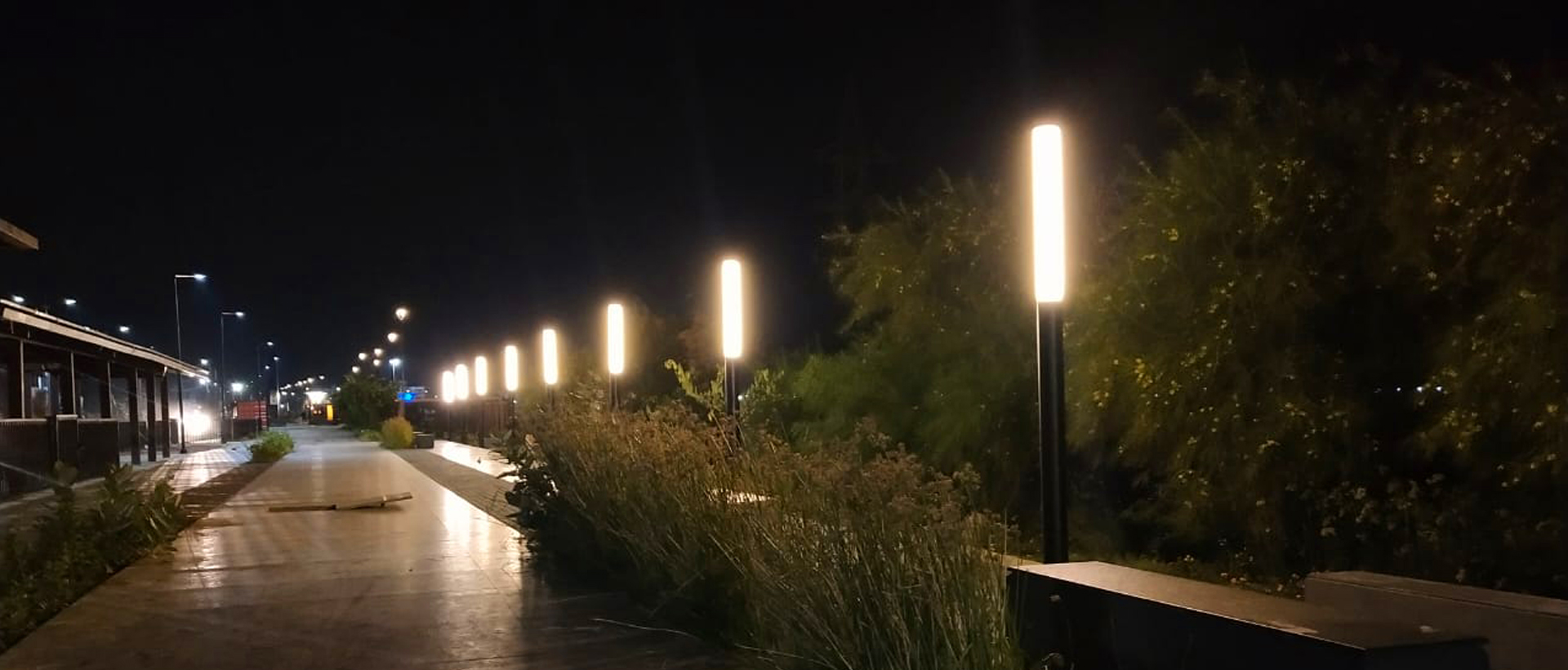

Suitable for Private & Public areas,Illuminating Driveways,Pathways,Building surrounds,Entrances,Squares & Gardens,Promenades.

Available Finish
Pure polyester powder coated
• Graphite grey
• Anthracite grey
• Jet black.

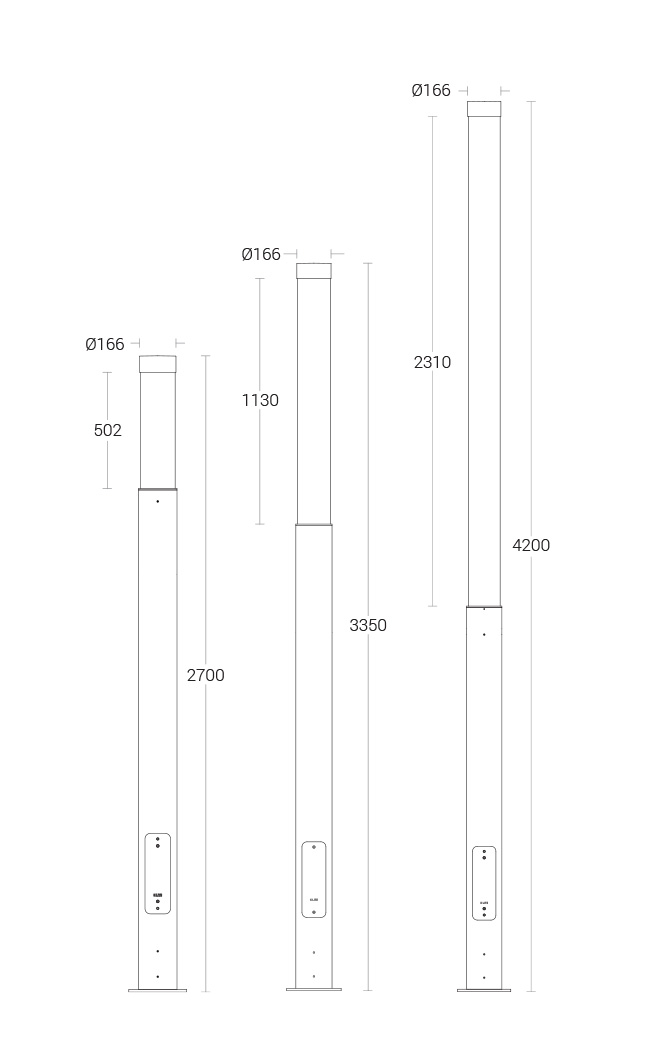

IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description
KL-702124W LED 2700K,3000K,4000K,5700K, Translucent PolycarbonateØ166 x 2700mmM11
Detailed Foundation Drawing
KL-7021-BA--4000K.IES
KL-7021-BA--4000K.PDF
7021.pdf
KL-702048W LED 2700K,3000K,4000K,5700K, Translucent PolycarbonateØ166 x 3350mmM11
Detailed Foundation Drawing
KL-7020-BANA-WW.IES
KL-7020-BANA-NW.IES
KL-7020-BANA-CW.IES
KL-7020-BANA-WW.PDF
KL-7020-BANA-NW.PDF
KL-7020-BANA-CW.PDF
7020.pdf
KL-7018100W LED 2700K,3000K,4000K,5700K, Translucent PolycarbonateØ166 x 4200mmM11
Detailed Foundation Drawing
7018.pdf
KL-7018.txt
