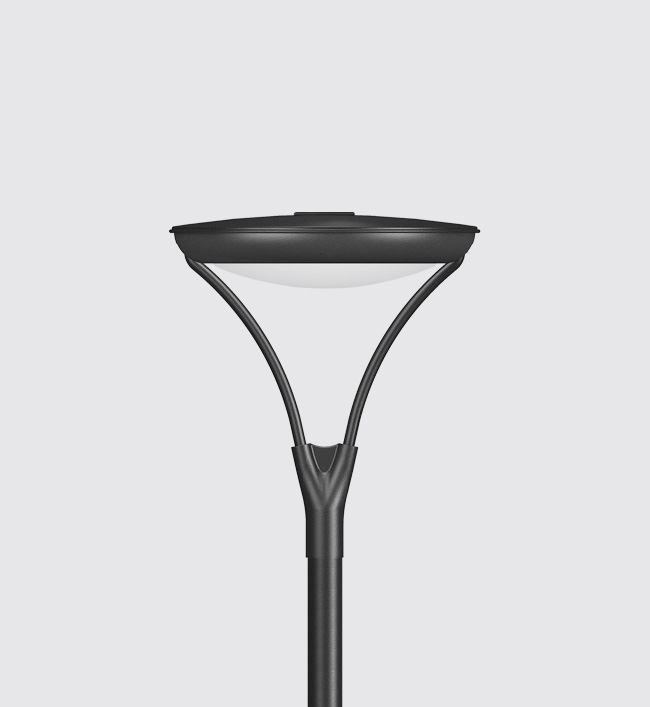

Keshav
The Keshav is a modern heritage post-top luminaire upgraded with high-performance light engines. It features an aesthetically pleasing and sturdy construction,ensuring durability and long life even in harsh weather conditions while maintaining its initial performance throughout its lifespan. Designed for optimal efficiency,the keshav delivers more lumens at reduced wattages. The product is available with an asymmetrical light distribution pattern,making it ideal for a variety of outdoor lighting applications.

Product Description
• The luminaire housing made of spun aluminium top cover and die cast aluminium bottom cover with supporting arm.
• The module along with driver is housed inside and covered with diffuser.
• Non yellowing UV stabilized clear acrylic diffuser.
• Luminaire integrated with 50W LED.
• Die cast aluminium mounting base.
• Suitable for mounting on 50mm OD pipe.
• Cable entries for through-wiring of mains supply cable.
• Integral constant current power supply
• CRI ( Ra) : >70
• Prewired with LED driver and suitable for operating on 240V,50Hz single phase ac supply.
• Ordering guide : KL-5384-CCT (Colour Temperature)
• Available CCT : 3000K,4000K,5700K

Product Benefits
• High luminous efficiency at reduced wattage.
• Elegance,Functionality.
• Environmental friendly,moisture proof,insect free.
• Dark sky compliant protects pedestrians from glare,in addition to preventing spill light above the horizontal plane.
• Sustainable LED technology offers durability and optimal light output with low power consumption.

Area of Application
Illuminating parks,Gardens,Commercial complex,Residential roadways,Walkways,Streetscapes & office complex.

Available Finish
• Pure polyester powder coated
• RAL 9004 Signal black
• RAL 9007 Grey aluminium
• RAL 7016 Anthracite grey
• Graphite grey
IDWattageDimensionMounting IESPhotometryTechnical DatasheetTechnical Description

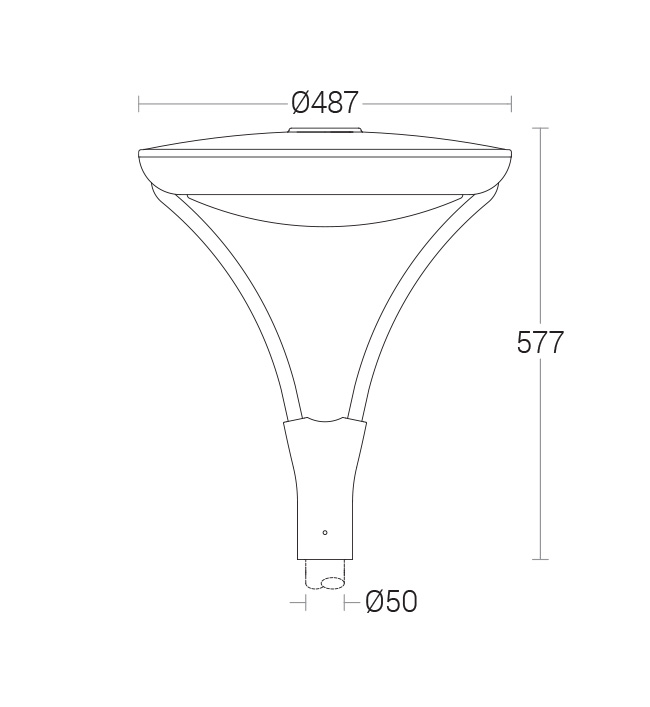

KL-450250W LED 3000K,4000K,5700K BA:Symmetrical, Clear AcrylicØ487 x 577mmD1
KL-4502.IESKL-4502.PDF4502.pdf
KL-4503100W LED 3000K,4000K,5700K BA:Type IV, Clear AcrylicØ487 x 577mmD1
4503.pdf
KL-538450W LED 3000K,4000K,5700K BA:Type II,Type III,Type IV, Clear AcrylicØ487 x 577mmD1
KL-5384-BATYPEIII-WW.IES
KL-5384-BATYPEIII-CW.IES
KL-5384-BATYPEIII-NW.IES
KL-5384-BATYPEIII-WW.PDF
KL-5384-BATYPEIII-CW.PDF
KL-5384-BATYPEIII-NW.PDF
5384.pdf
KL-5384.txt
